3D Multi Mode Endoscope Device

Stereoscopic, intelligent, Precise diagnosis and treatment


3D Multimodal System

Multimodal Integration Stereoscopic Visualization Intelligent Interconnection

Combining 3D and 4K technologies with NIR/ICG near-infrared fluorescence imaging technology provides doctors with more three-dimensional images and precise details, which is more conducive to identifying diseased tissues and improving surgical accuracy.

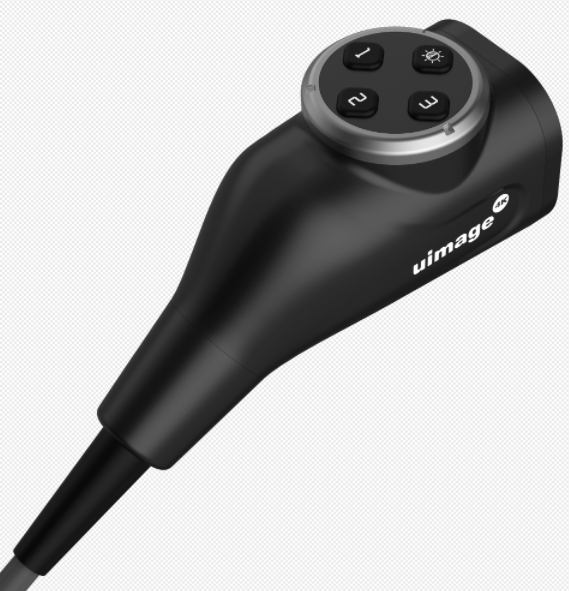

The front-end uses dual channel high sensitivity CMOS image sensors.

Utilizing the stereoscopic disparity of the human eye to achieve an immersive vertical sensation.

Rotating 3D effect, safer without dizziness.

PC+APP interconnection can be achieved through the internet port, providing free public PC and APP software, which can realize device interconnection, remote control, and assist in smart healthcare.

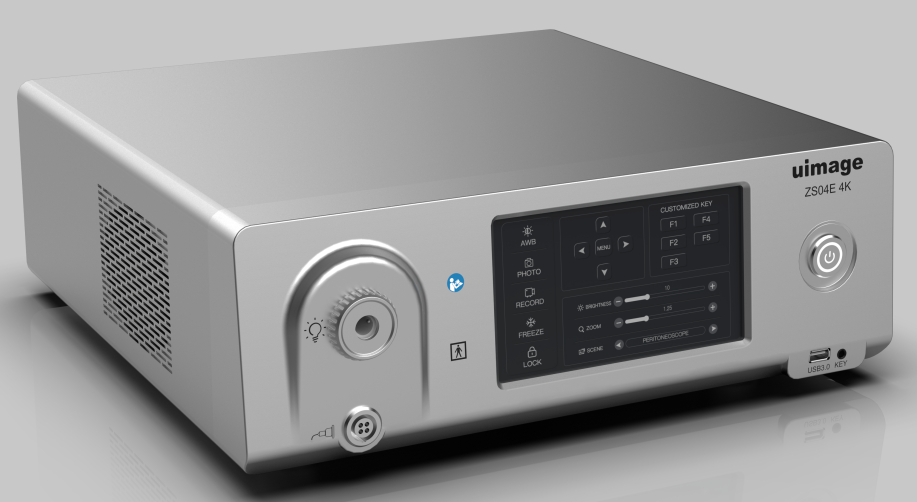

Application Products:
ZR4HB
ZR4E
ZR5HB

应用

Stereoscopic 3D Effect


3D Mode

This mode superimposes the images of two CMOS cameras on the left and right in a stereoscopic manner, combined with intelligent algorithms such as detail enhancement, providing customers with clear and stronger 3D stereoscopic image effects.

Fluorescence Mode

This mode highlights the ICG signal through infrared excitation light, providing white light and fusing with native three types of fluorescence images, helping doctors achieve precise diagnosis and treatment under fluorescence.

Network Intelligent Interconnection

  • pic2.png

    APP Interconnection

    Provide free APP public version software, which can synchronize the APP end with the host end, control the host to take photos and videos, and achieve portable operation.
  • pic1.png

    PC Interconnection

    Provide free PC version software that can synchronize photography and video recording between PC and host, as well as capture and save images.

视频案例

Medical innovation animal experiments

提供免费的APP公版软件,可实现APP端与主机端同步,可控制主机拍照录像,实现便携式操作。

4k Ultra-high-definition Case Video 1

提供免费的APP公版软件,可实现APP端与主机端同步,可控制主机拍照录像,实现便携式操作。

应用场景

产品内部结构图
