project | unit | Technical Requirements | |
conductor | Conductor structure | N/mm | 19/0.08SC +8C |
Diameter of a single conductor | mm | 0.08±0.003 | |
Conductor stranding OD | mm | 0.4±0.05 | |
insulation | insulating material | —— | FEP(Red/Black/White/Grey/Blue/Brown/Yellow/Green) |
Insulation Thickness | mm | 0.15 | |
Minimum thickness at any point | mm | 0.12 | |
insulated outer diameter | mm | 0.7±0.05 | |
Total twisting | stranded outer diameter | mm | 4.4±0.10 |
fill | —— | Outer cotton rope | |
Wrap PTFE film inside and outside the weaving layer | mm | 17*0.075 white film | |
block | Weaving structure | —— | 176/0.1TC（98%） |
sheath | Jacket material | —— | 80ATear resistant silicone（dark gray） |
Nominal thickness of sheath | mm | 0.85 | |
Minimum thickness at any point | mm | 0.70 | |
Finished Outer Diameter | mm | 6.5±0.15 | |

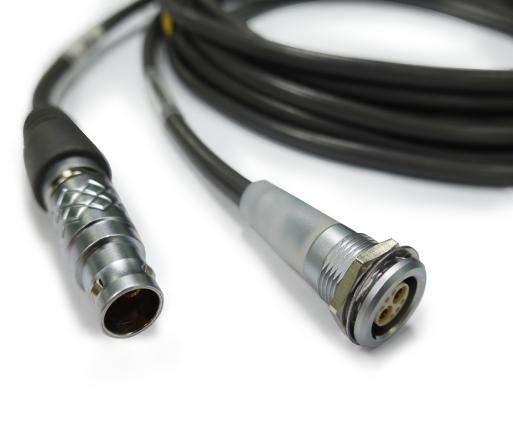

Product Details
Specification parameters
Characteristics
Explanation
RG137 coaxial line
Conductor: 7/0.10 silver plated copper+tin plated copper braided shield
OD: 1.37 ± 0.05 Material: FEP
Color: Black/Dark Grey/Light Grey/White
Impedance: 50 Ohms
