| Type | Parameter |
|---|---|
| White light color rendering index | 92 |
| White light color temperature | 4500K～5500K |
| Radiant flux ratio of white light, red green, and blue light | The ratio of ∅ er to ∅ eg is 0.9, and the ratio of ∅ eb to ∅ eg is 1.1 |
| White light infrared cutoff performance | 5mW/lm |
| Uniformity of white light illumination | 0.2 |
| White light illumination exceeding the limit point | 0 |
| White light output total luminous flux | Above 1400 lm |
| Infrared radiation flux (750-790nm) | 600mW |
| Infrared peak wavelength range | 760nm |
| Infrared half width at half maximum | 25nm |
| Mechanical interface specifications | Ф10mm |

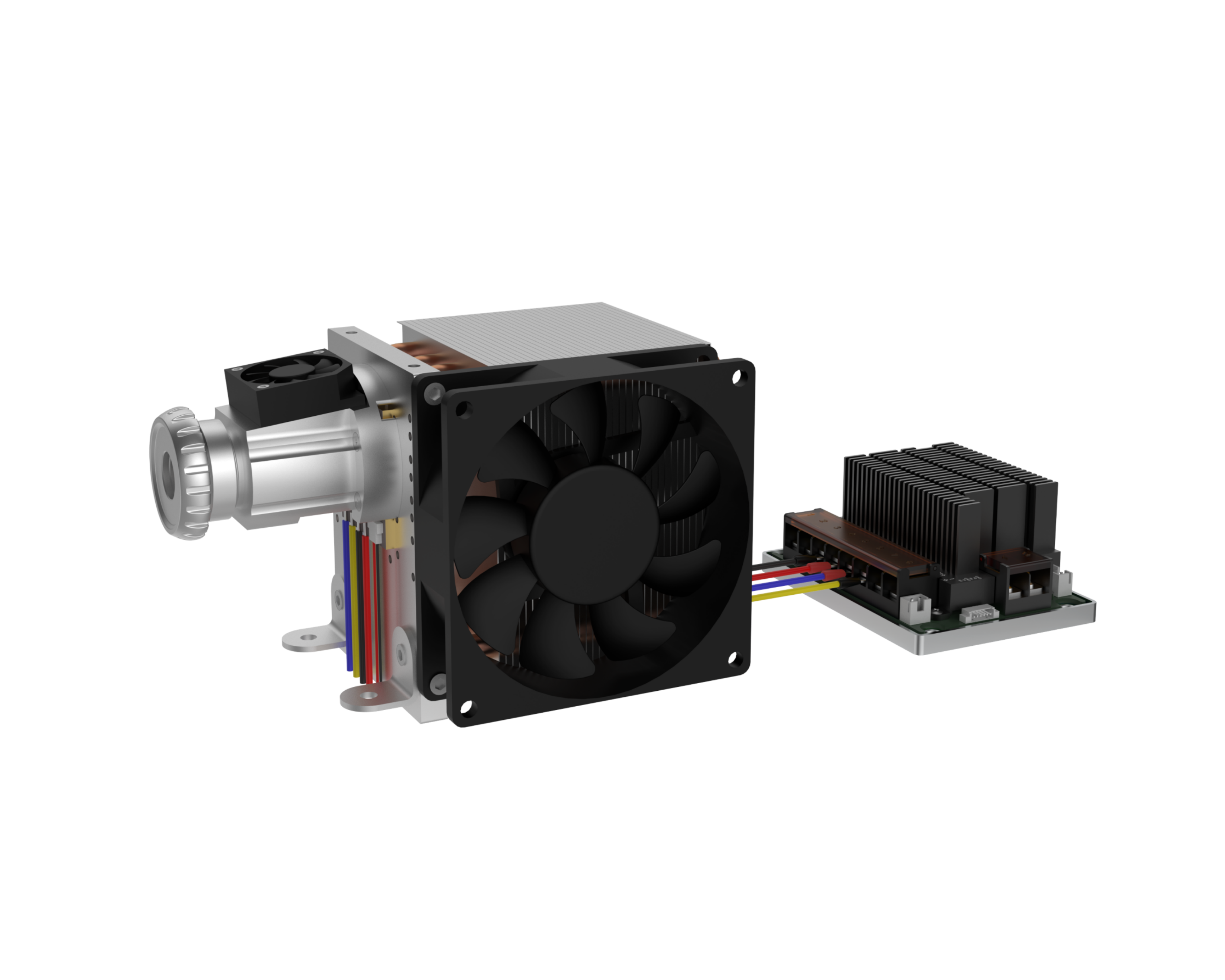

MLS03 Mixed Light Source
Automatic plug and unplug detection, high brightness greater than 2000 lumens; Greater than 92% color rendering index, color reproduction is realistic; Illumination uniformity greater than 0.2, no dark corners
Product Details
Specification parameters
Characteristics
Explanation
1. This light source supports dual channel constant current source output, with 1 channel of LED white light and 1 channel of LED fluorescence. The maximum power of the LED white light source is 120W, and the LED fluorescence light source
2. Maximum power of 24W, simultaneous output of LED white light and LED fluorescence up to 144W.
3. This system supports 2 12V DC fan outputs.
4. This system has temperature detection function, supporting 2 temperature detection channels, 1 channel for LED light board temperature detection and 1 channel for constant current source driver board temperature detection. When the LED light board heat sink fan fails, the light guide beam heat sink fan fails, the LED light board is abnormal, or the LED light board temperature detection circuit fails, the LED light board temperature detection will activate the protection mechanism. At this time, the LED white light and LED fluorescent light board current output will be reduced, and the brightness of the LED white light and LED fluorescent light source will be reduced. If the temperature detection finds that the temperature has returned to normal, the output current will return to normal. When the temperature detection circuit of the constant current source drive board detects that the temperature of the constant current source drive board is too high, it will reduce the LED white light current output and decrease the brightness of the LED white light source. If the temperature detection finds that the temperature has returned to normal, the output current will return to normal.
5. This system supports plug-in detection function. When the light source is set to constant light mode, if no guide beam insertion is detected after system startup, the light source will not light up. When a guide beam insertion is detected, the light source will automatically light up. Later, when the guide beam is detected to be unplugged, the light source will automatically turn off. When the light source is manually turned off, the plug-in detection function is turned off.
This product is a new generation of LED light source independently developed by our company, which can provide LED white light and LED fluorescence output.
The constant current source driver board supports online system upgrades and can be upgraded by sending upgrade files from external hosts. Can support external command control to adjust the brightness of the light source.
This light source supports 0-100 level LED white light and LED fluorescence brightness control, with 100 level being the highest power, LED white light and LED fluorescence brightness being the highest, and 0 level being the lowest power, with LED white light and LED fluorescence light sources turned off.
