| Type | Parameter |
|---|---|
| Image Sensor Size | 1/1.2 inch |
| Image Sensor Type | CMOS |
| Scanning Method | line-by-line scanning |
| Frame Rate | 60fps |
| Effective Pixels | 3840(H)x 2160(V) |
| Horizontal Resolution | >1700 line |
| Vertical Resolution | >1200 line |
| Brightness Response Characteristics | Linear fitting coefficient R≥0.99 |
| Signal-To-Noise Ratio | 50dB |
| Spatial Frequency Response | MTF50:34C/°，MTF30:38 C/ |
| Tolerance Of Static Images | >150 |
| Minimum Illuminance | 1LUX F1.2 |
QS81T Camera
QS series ultra high definition imaging system camera, supporting 4K fluorescence and 4K 3D applications
Product Details
Specification parameters
Characteristics
Explanation
Description
The QS81 module has a large target area, good low light performance, low noise, good color reproduction, and a circular shape. It is suitable for endoscopic camera systems, dental, ophthalmic and other microscope camera systems.
Feature
1. Target surface: 1/1.8 inch
2. Maximum pixel size of 9.17M Pixel
3. Maximum 60Frame/s for all pixels
4. Supports HDR and multiple exposures
5. Maximum gain of 72dB
6. Minimum pixel unit: 2.0uM * 2.0uM

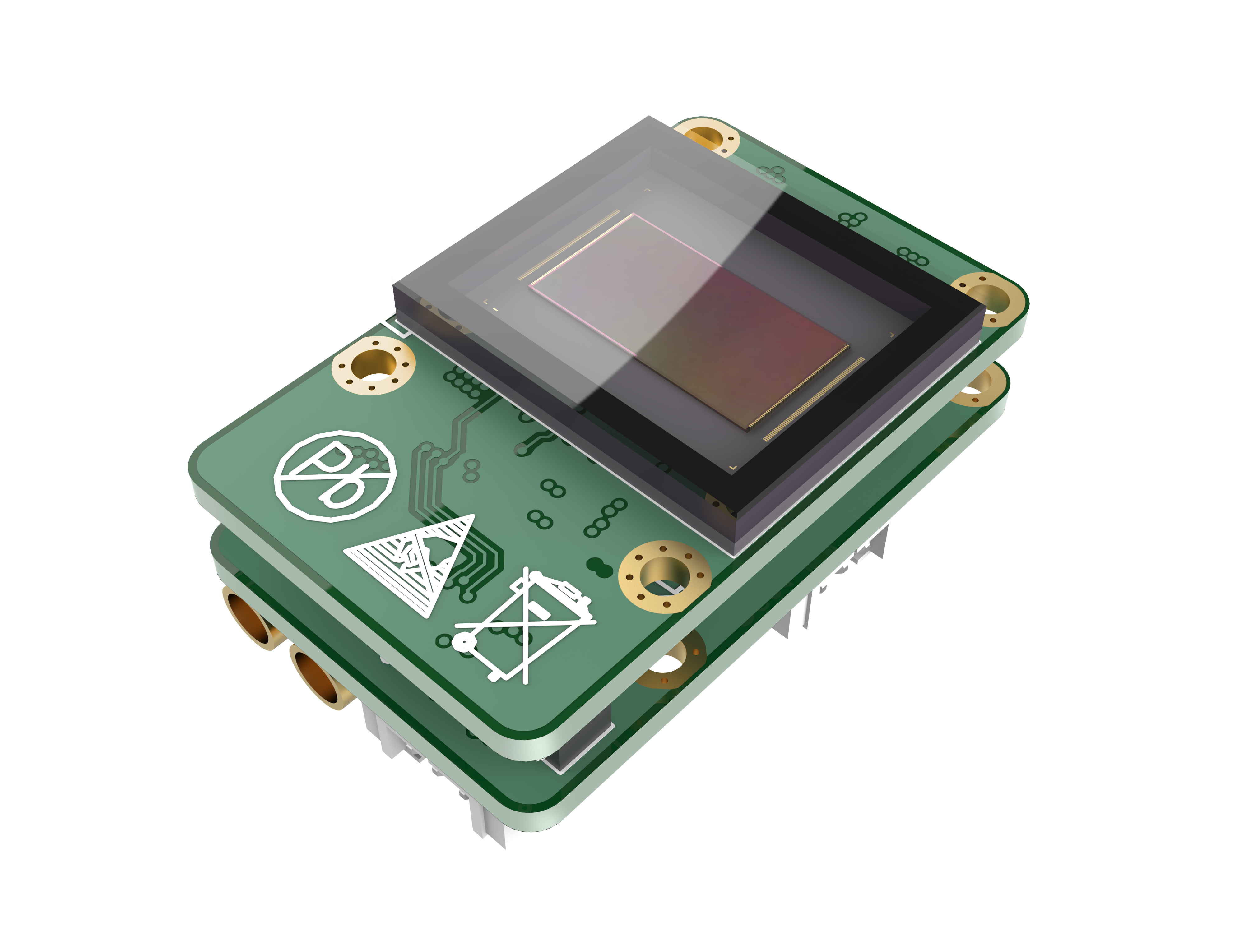

7. Structural parameters: 21.0mm x 33.5mm, double-layer plate structure, height 6.7mm
8. Power consumption:<1.5W
Application field
