| Type | Parameter |
|---|---|
| Image Sensor Size | 2个1/1.8 inch |
| Image Sensor Type | CMOS |
| Scanning Method | line-by-line scanning |
| Frame Rate | 60fps |
| Effective Pixels | 3840(H)x 2160(V) |
| Horizontal Resolution | ≥1800 line |
| Vertical Resolution | ≥1500 line |
| Brightness Response Characteristics | Linear fitting coefficient R²≥0.99 |
| Signal-To-Noise Ratio | 50dB |
| Spatial Frequency Response | MTF50:38C/°，MTF30:43 C/° |
| Tolerance Of Static Images | ≥100 |
| Minimum Illuminance | 0.1LUX F1.2 |

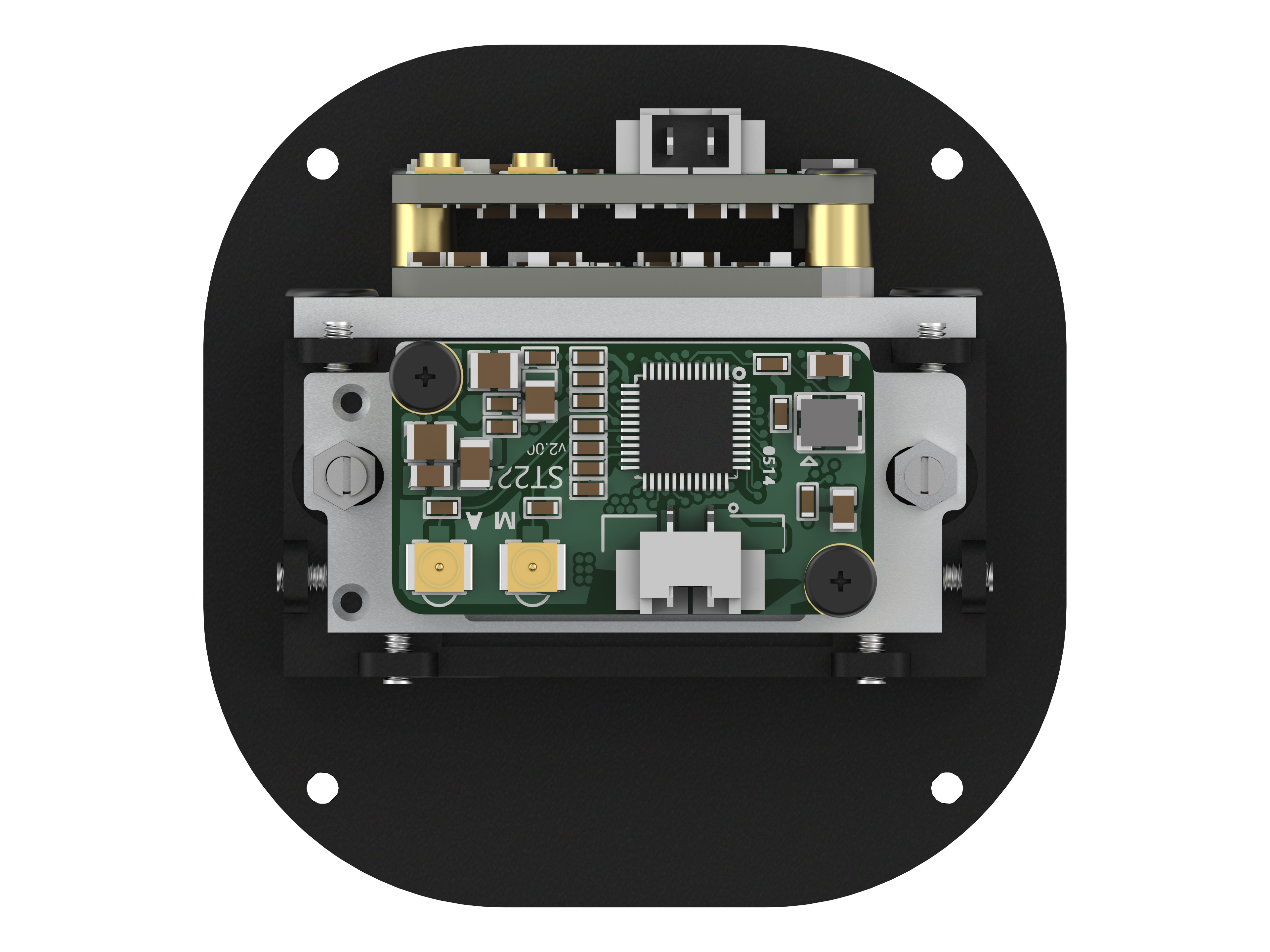

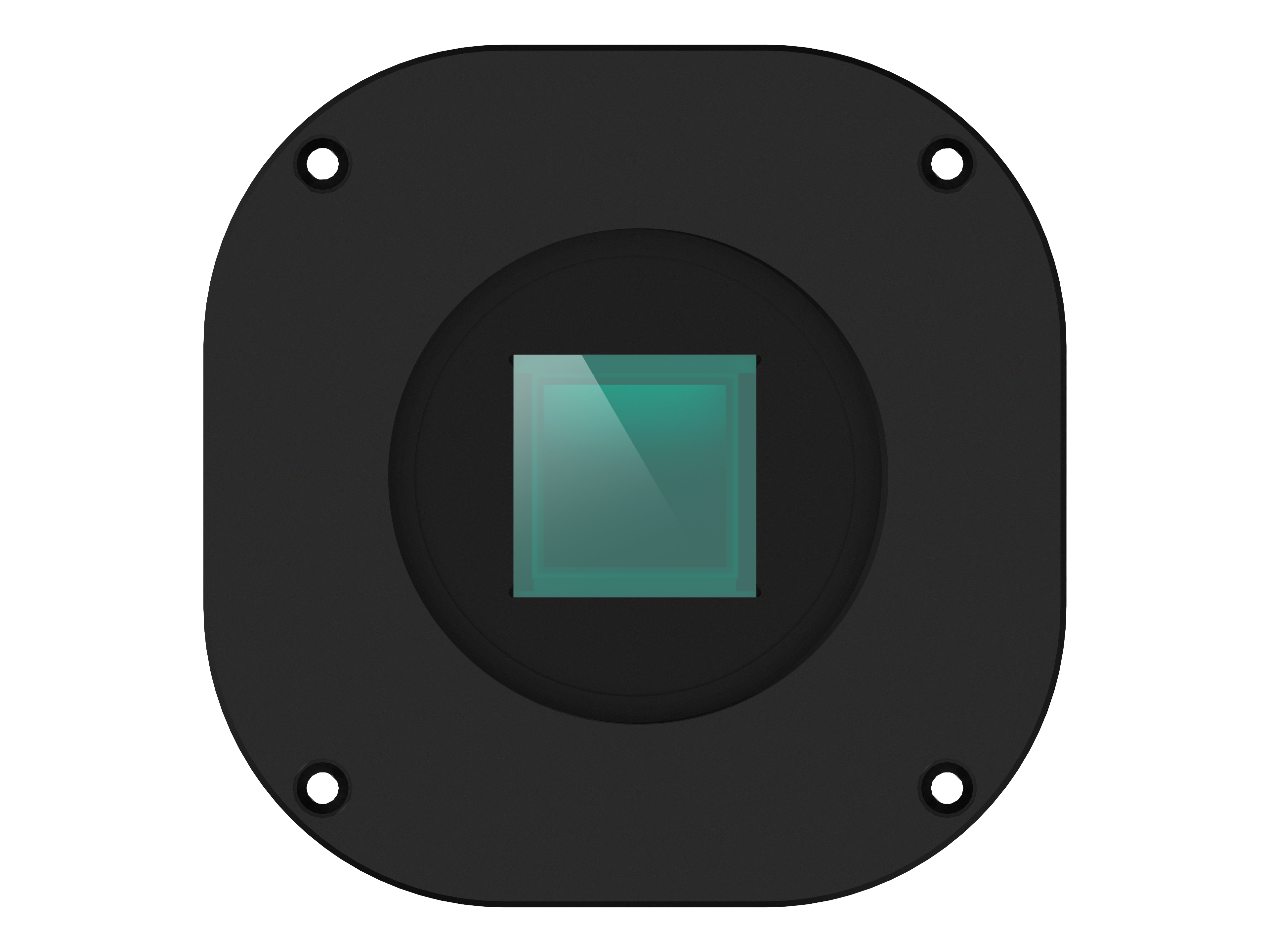

IS82 Fluorescent Module
A camera fluorescence module composed of two SS82, mainly used for 4K fluorescence scenes
Product Details
Specification parameters
Characteristics
Explanation
This product is a new generation of fluorescence module independently developed by our company, which can provide two signal outputs of color sensor and fluorescence sensor.
5V power supply, 1.65W power, low heat generation, module maximum temperature of 45 degrees, module bracket made of aluminum alloy material, with good thermal conductivity.
The color sensor and fluorescence sensor of the fluorescence module both output 4K60 format image data, and the video signal interface is two 2-lane IPEX interfaces, supporting the expansion of the keypad. The optical interface supports C/CS interface and a minimum flange distance of 18mm.
The fluorescent module has dust-proof function, with a dust-proof level of 6, completely preventing dust from entering. It will not cause dust to enter when installed in a normal environment. This fluorescent module has exposed PCB board and does not have waterproof performance. Do not splash water on the module to avoid short circuit or other damage.
