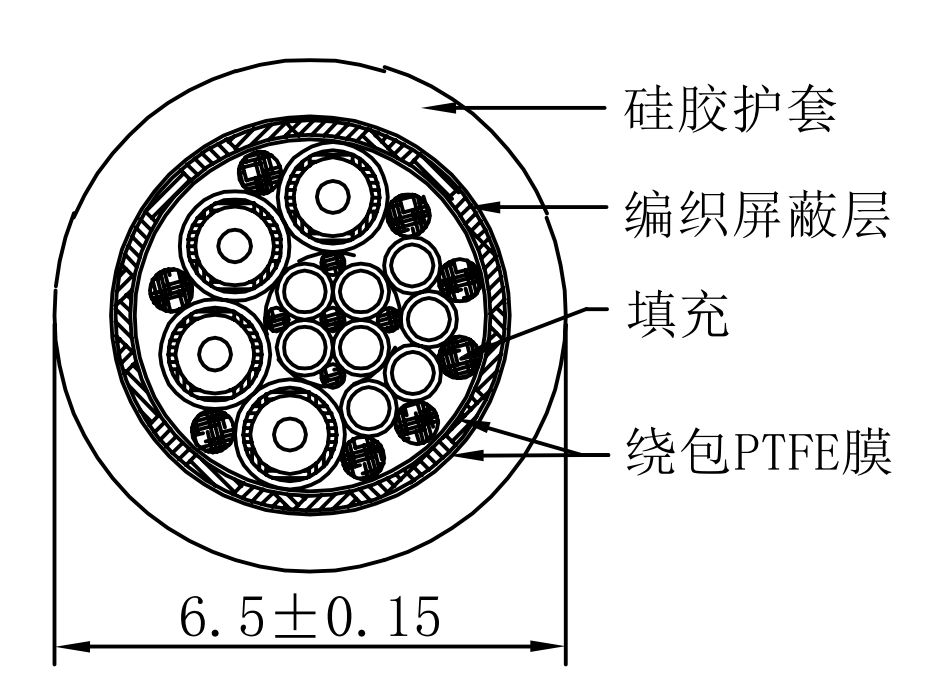

Project | Unit | Technical Requirements | ||
conductor | Conductor structure | N/mm | 30/0.08TC *6C | 19/0.08TC *4C |
Diameter of a single conductor | mm | 0.08±0.003 | 0.08±0.003 | |
Conductor stranding OD | mm | 0.5±0.05 | 0.4±0.05 | |
insulation | insulating material | —— | FEP(Red/Black/White/Grey/Light Blue/Orange) | FEP(Blue/Brown/Yellow/Green) |
Insulation Thickness | mm | 0.20 | 0.18 | |
Minimum thickness at any point | mm | 0.17 | 0.15 | |
insulated outer diameter | mm | 0.9±0.05 | 0.75±0.05 | |
Total twisting | stranded outer diameter | mm | 4.2±0.10 | |
fill | —— | White cotton rope(10S/12)*1PCS | ||
Wrap PTFE film inside and outside the weaving layer | mm | 16*0.075 Milky white film | ||
block | Weaving structure | —— | 160/0.08TC（91.4%） | |
sheath | Jacket material | —— | 60ATear resistant silicone（dark gray） | |
Nominal thickness of sheath | mm | 0.97 | ||
Minimum thickness at any point | mm | 0.82 | ||
Finished Outer Diameter | mm | 6.5±0.10 | ||

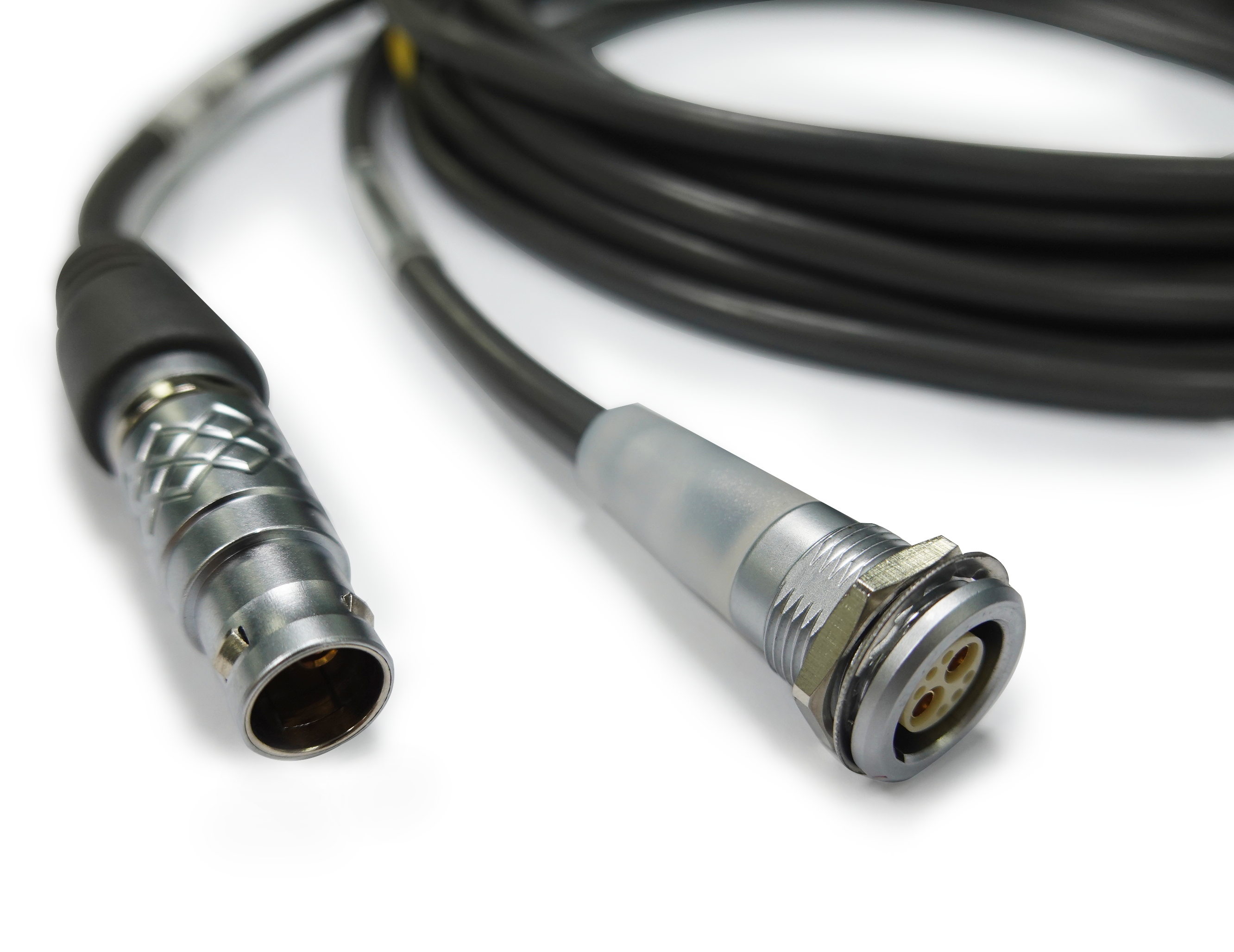

Product Details
Specification parameters
Characteristics
Explanation
RG137 coaxial line
Conductor: 7/0.10 silver plated copper
OD: 1.37 ± 0.05 Material: FEP
Color: Black/Grey
Impedance: 50 Ohms
